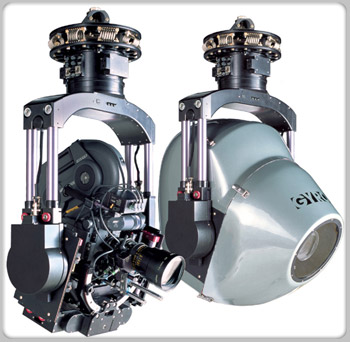

| GYRON FS and SUPER G |
Gyron Systems International is the provider of the Gyron FS and

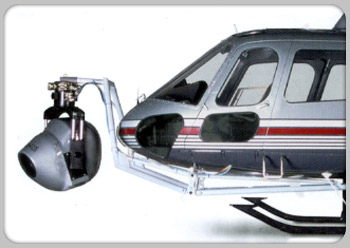

the Super G systems. These complete turnkey film based gimbals
include an STC’d helicopter bracket and the Arri 435 camera package
with an Angenieux 10-to-1 zoom lens. These systems are fully
capable of integrating almost any camera package imaginable.
The FS and Super G are the very best solutions for shooting film from
the aerial perspective.
The Gyron FS and the Super G are regularly used on camera cars,
jib arms and anywhere a smooth and steady shot is required. They
have become the gold standard in gyro-stabilized film systems.
They also are capable of shooting Vista Vision, 65mm / 5 or 8 Perf.,
and 65mm IMAX formats. |
| FEATURES: |
 |
|
| • |
5-Axis Gyro-Stabilization: Eliminates Pan, Tilt And Roll Jitter To The Camera. |
| • |
Maintains Internally Stabilized Pointing Direction Independent Of Vehicle Maneuvers |
| • |
Fully And Easily Steerable In All Three Axes: Pan, Tilt And Roll |
| • |
The ONLY Gimbal With Stabilized Steerable Roll Control |
| • |
Remote Controlled Motorized 2x Extender On Lens |
| • |
Gimbal System Electronics Are Placed In The Cockpit, Or Luggage Compartment. |
| • |
User Friendly Control Desk Ergonomically Designed For Ease Of Operation |
| • |
System Uses State-Of-The-Art Sensing Technology |
|
 |
|
| |
| SPECIFICATIONS: |
|
|
| Rotation: |
|
360 Degrees Continuous |
| Tilt Range: |
|
120 Degrees |
| Stabilized Roll Range: |
 |
+/- 50 Degrees, Or Automatic Level Horizon, Selectable |
| Power Requirements: |
|
24-28 VDC @ 3-Amps Standby, 15-Amps Dynamic Maximum |
| Maximum Camera Weight: |
|
90 Pounds / 41 Kilos |
| System Weight: |
|
128 Pounds / 58 Kilos (Less Covers And Isolator) |
| Back Pan: |
|
Automatic Or Selectable |
| Target Tracking: |
|
Automatic Or Selectable |
| Pan Speed: |
|
120 Degrees Per Second |
| Tilt Speed: |
|
60 Degrees Per Second |
| Roll Speed: |
|
60 Degrees Per Second |
| Lens Controls: |
|
The System Is Wired To Accept All Popular Lens Controls. |
|
|
|
|
 |
